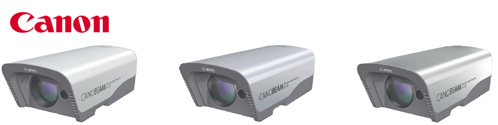

DT-100 Series |
DT-110 |
DT-120 |
DT-130 |
Standard Transmission Distance* |
20~500m |
100~2000m |
100~1000m |
Data Transmission Speed |
25~156Mbps |
25~156Mbps |
1.25Gbps |
Transmission Device |
Laser Diode |
Laser Diode |
Laser Diode |
Laser Wavelength |
785± 15nm |
785± 15nm |
785± 15nm |
Laser Output Power |
Approx. 7mW |
Approx. 11mW |
Approx. 11mW |
Safety Class of Laser |
Class 1M |
Class 1M |
Class 1M |
Receiving Device |
Si PIN-PD |
Si APD |
Si APD |
Auto Tracking Adjustment |
Yes (Horizontal: ± 1.2º Vertical:± 1.2º) |
Yes (Horizontal: ± 1.2º Vertical:± 1.2º) |
Yes (Horizontal: ± 1.2º Vertical:± 1.2º) |
3R Function |
- |
- |
Yes |
Media Interface |
SFP Slot x1 |
SFP Slot x1 |
SFP Slot x1 |
Operation Temperature Range |
-20ºC~+50ºC |
-20ºC~+50ºC |
-20ºC~+50ºC |
Power |
AC100-240V 50/60Hz (DC-48V optional- Please contact a Canon office for more information) |
AC100-240V 50/60Hz (DC-48V optional- Please contact a Canon office for more information) |
AC100-240V 50/60Hz (DC-48V optional- Please contact a Canon office for more information) |
Power Consumption |
Approx. 20W |
Approx. 20W |
Approx. 20W |
Installation Environment |
Indoor or outdoor (Weatherproof : IP56) |
Indoor or outdoor (Weatherproof : IP56) |
Indoor or outdoor (Weatherproof : IP56) |
Dimensions |
246(W)x168(H)
x487(D)mm |
246(W)x168(H)
x487(D)mm |
246(W)x168(H)
x487(D)mm |
 Weight
|
Approx. 8 Kg |
Approx. 8 Kg |
Approx. 8 Kg |
*Longer transmission distances can be achieved but this
is a function of weather conditions and acceptable link
availability.
